Sew a combo Case & Stand for your phone or e-reader!

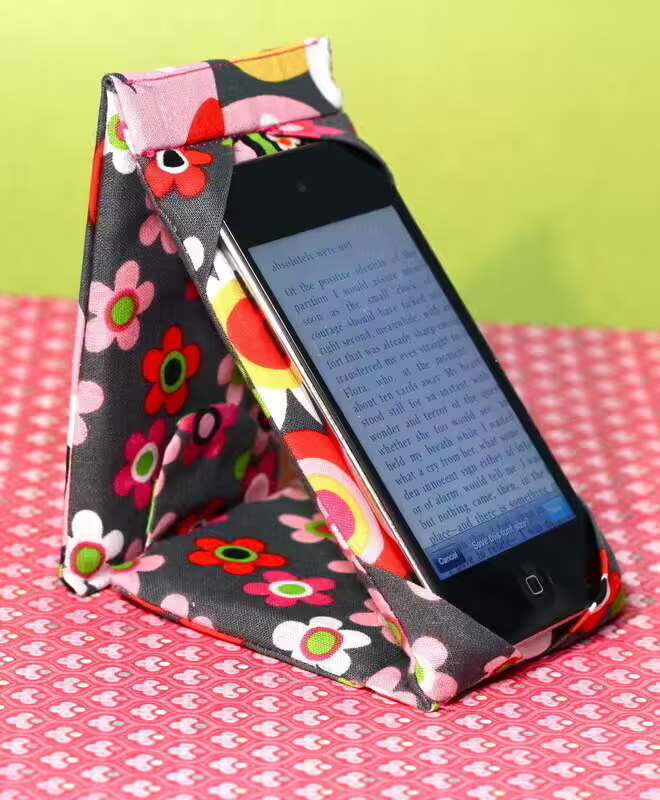

Make a combination Case Stand for your iPod Touch or iPhone. Or use the formula to adapt the pattern for your e-reader or iPad. It’s padded to protect your device, snaps shut like a wallet, and stands on its own!

Posted by MadeByMarzipan from Rexburg, Idaho, United States • Published See MadeByMarzipan's 7 projects »
  • Step 1

    First we’ll cut the inner fabric pieces. This is what will show when your case is opened. All pieces will be cut to the same width: measure the Width of your device and add 1 inch. We’re going to cut three pieces.

    A) The first piece should be the Length of your device, + the Thickness of your device, + another 1/2 inch for seams.

    B) The second piece should measure the Length of your device, + a 1/2 inch for seams.

    C) The final piece should measure half the Length of your device, plus the Thickness of your device, + another 1/2 inch for seams.

    For an iPod Touch or iPhone 4, cut the pieces to

    3.25 W x 5.75 L
    3.25 W x 5.25 L
    3.25 W x 4.0 L

  • Step 2

    Now we’ll make the corner pockets. I’m cutting four 2-inch squares from my outer fabric. If your device is thicker, say a half-inch, you may want to cut these larger and make a little pleat when you sew them. Alternately, you could choose to substitute wide elastic here.

  • Step 3

    Fold the squares in half to create triangles and press. Pin one to each corner of the second piece you cut, lining up all the raw edges. Sew along the raw edges of the triangles with a 1/8 inch seam. Right now we’re basically just tacking these down, they’ll be sewn more securely later.

  • Step 4

    Now we’ll sew together our inner fabric pieces. Place one piece on top of your pocket piece, right sides together. Sew along the short edge with a 1/4 inch seam. Then, lay the last inner piece on the other end of the pocket piece, right sides together, and sew with a 1/4 inch seam. So now your pocket piece should be in the middle. Press the seams open.

  • Step 5

    Next we’ll make our tab closure. Cut a 2.5 inch square of each pattern of fabric. Sew together with a 1/4 inch seam, leaving the bottom edge open for turning. I chose to round off my corners. Turn the tab right side out and press.

  • Step 6

    Now we can cut the rectangle of outer fabric. You can skip a lot of calculations if you just lay the sewn inner piece of fabric on top, and cut your outer fabric to the same size.

  • Step 7

    With the sewn inner fabric face up, place the tab along the center edge of the shortest rectangle. It should be pointing inward. Make sure that like patterns are touching.

  • Step 8

    Then lay the outer fabric face down on top of the the inner fabric and pin in place. Sew along the three edges with a 1/4 inch seam, leaving the short end without the tab open.

  • Step 9

    Trim the edge of the tab if necessary. Turn right side out and poke out the corners with a blunt tool. Press well.

  • Step 10

    Now we’ll cut the inserts. This gives the case the stability to stand on its own. You can use chipboard or thick cardboard. Trim the chipboard to slightly smaller than your sewn case. You want it to slide in easily, but still be snug.

  • Step 11

    We’re going to cut the chipboard into five pieces. Two pieces will create bindings. Each binding insert should be equal to the Thickness of your device. The other three pieces will go inside each rectangle section. You’ll need to leave a little space between each insert to sew a seam.

  • Step 12

    Before inserting, we’ll add some batting to protect the device. Use fabric adhesive spray to add thin batting to each side of the three inserts. (You don’t need to add it to the binding inserts.) It’s a good idea to protect your work area with wrapping paper.

  • Step 13

    Slide the short insert into the case and work it down to the bottom. If necessary, insert your scissors and smooth down the batting. Topstitch a seam right next to the insert.

  • Step 14

    Next add a binding piece. Slide it down to the seam, then topstitch next to the insert to hold it in place. The seam should be nearly on top of the seam that holds your inner rectangles together.

  • Step 15

    Add the center piece, and topstitch close to the original seam. Add a binding piece, and topstitch right next to it. Finally, add the last insert.

  • Step 16

    Fold the raw edges inward. You could topstitch this shut, but it will look much tidier if you sew the opening by hand with a blind stitch. If it’s done properly, you shouldn’t see your stitches at all.

  • Step 17

    Now we just need to add the snaps. Hand sew the protruding half of the snap to the inside of the tab. Close the case and note where the snap touches, and sew its mate there.

  • Step 18

    Open the case and stand it upright. The short piece with the tab should be on bottom. The tab should be on the inside of the case. Note where it touches the back, and sew a mate there as well.

  • Step 19

    All finished! Please note this tutorial is for personal use only.
