How to make chainmaille (mayle)
This Is just a small look into how I make all my mayle. The only things I change is the rod size and the wire gauge (and occasionally wire material, eg; brass, steel etc). In this tutorial I am using 1.6mm galvanised steel wire and 5mm diameter rod. I am usung a pair of diagonal cutting pliers (more expensive ones are easier to use by far and last at least 300x longer!) needlenose pliers (shortened slightly) and hook nose pliers. Note, both the latter-mentioned pliers need to have NO TEETH otherwise you risk marking the wire and leaving a poor looking finish on the mayle. The time put is for tutorial prep time only. Your results may vary depending on experience.
I would be happy to be shown other peoples projects based on my teachings :)

Posted by Glittering Edge from Edinburgh, Scotland, United Kingdom • Published 25th August 2011 • See Glittering Edge's 15 projects »

Print • Embed

.María F. favorited How To Make Chainmail/Chainmaille (Mayle) 22 Jan 22:23
Darian D. added How To Make Chainmail/Chainmaille (Mayle) to FUN 29 Mar 08:04
Sarah E. added How To Make Chainmail/Chainmaille (Mayle) to To-make list 06 Mar 02:52
Diane P. favorited How To Make Chainmail/Chainmaille (Mayle) 22 Oct 14:55
kimberleyann.black.3 favorited How To Make Chainmail/Chainmaille (Mayle) 20 Oct 22:12
zoegirl221 favorited How To Make Chainmail/Chainmaille (Mayle) 21 Sep 22:17
Ada B. added How To Make Chainmail/Chainmaille (Mayle) to Smart Ideas 14 Apr 13:12
margot d. favorited How To Make Chainmail/Chainmaille (Mayle) 06 Apr 14:47
jessica.boulanger.10 favorited How To Make Chainmail/Chainmaille (Mayle) 10 Feb 23:27
Taba__tina added How To Make Chainmail/Chainmaille (Mayle) to accessori 04 Jan 18:30

Step 1
My basic setup. Jig, 2 work pliers 1 pair of diagonal cutters and some wire.
Step 2
Hole drilled in the end of the steel rod big enough for the wire to fit through.
Step 3
Starting to wind, keep the wire flush on each new layer and wind slowly to be sure you dont mess it up.
Step 4
Snip the part of the wire that goes the hole to remove the rod from the coil
Step 5
Coil removed from the jig
Step 6
Built up supply of coils.
Step 7
Stretch it out aenough for the cutters to be able to snip the wire. Depending on the quality of the wire and winding you sometimes get slightly uneven stretching which is easily remidied
Step 8
Leave a slight overlap when cutting to ensure you get an even circle when the link is closed
Step 9
Building up the link amounts.. This may take a while..
Step 10

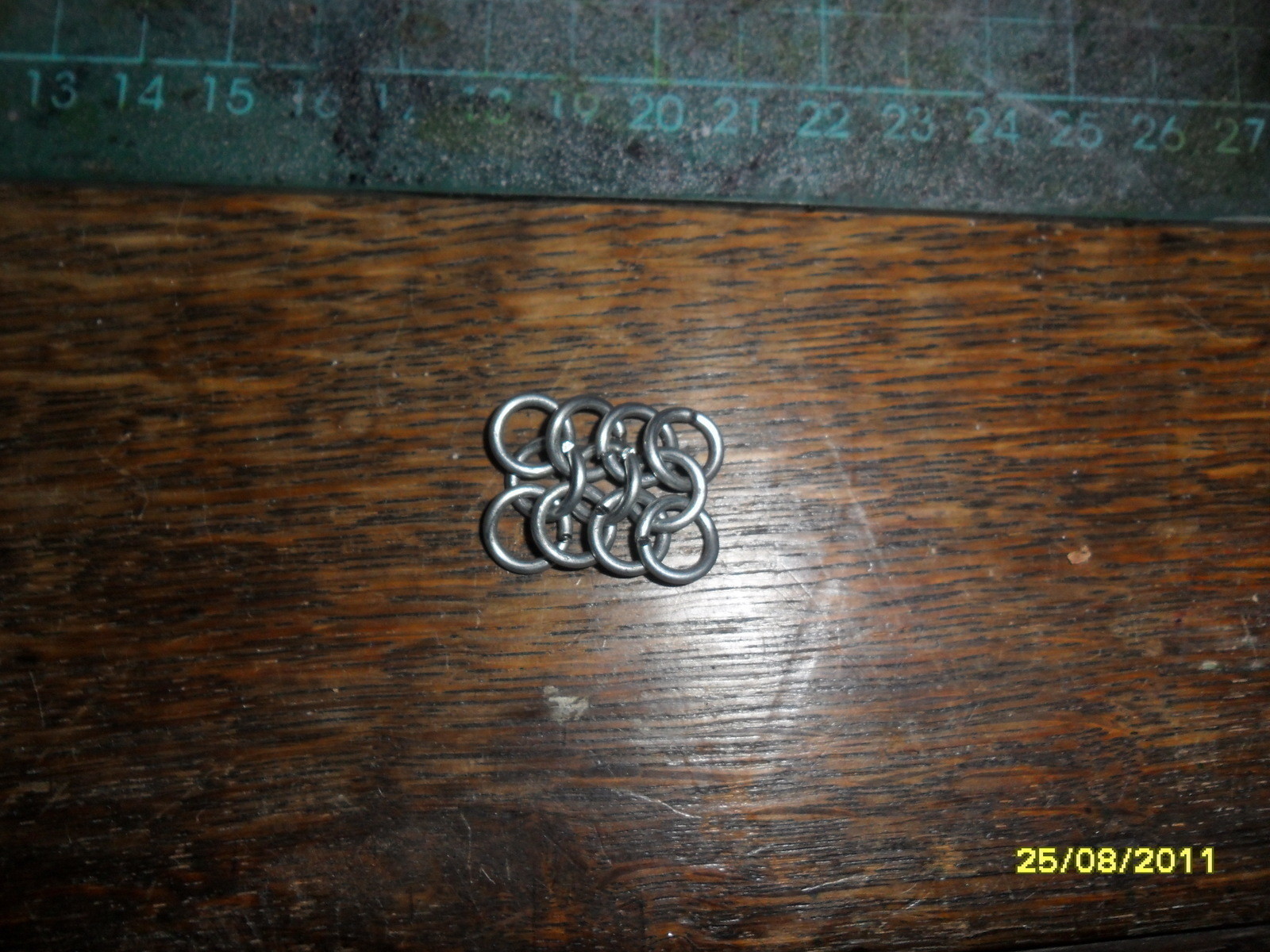

Close view of the "basic unit" or starting point. 4 links are each joined up by 1 central link.
Step 11
2 closed links with 1 open will be added to the starting point
Step 12
Before closing the next link up, put it through 2 links on the starting point.
Step 13
The piece is now growing
Step 14
End piece for my tutorial. You can easily add more links in and direction desired. Sometimes you may link up 1 link with 3 or 5 by mistake. It happens, but if caught in good time can easily be remedied or ignored.

Look out for my next tutorial Mayle Star
